Industrial Flat Tip pH Electrodes

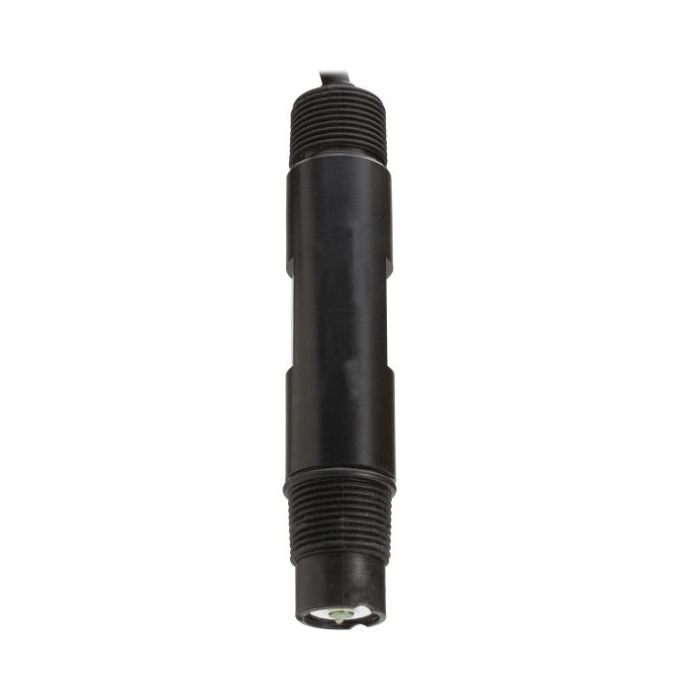

Name: Industrial Flat Tip pH Electrodes
SKU: HI1006-2005
Price: 389.00 EUR

389,00 € 2.930,92 kn

Najniža cijena u zadnjih 30 dana: 389,00 EUR (2.930,92 kn)

Na lageru

Hanna presents a series of combination pH electrodes incorporating over 20 years of electrode manufacturing experience. The most advanced feature of this series is the electrode shape with a flat tip, virtually eliminating deposits that can foul the electrode, significantly reducing necessary maintenance. This characteristic makes flat tip electrodes ideal for continuous in-line monitoring and for solutions containing aggressive chemicals.

Self-cleaning flat tip sensor for significantly reduced maintenance.
Provided with an internal matching pin that can avoid typical problems caused by grounding loop current.
3/4” NPT external thread on both ends for easy installation.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Opis

Sku	Cable Length	Connection	Internal Temperature Sensor	Glass Type	Junction	Price
HI1006-4005	5m (16.4')	BNC	No	Fluoride Resistant (HF)	PTFE	$335.00
HI1006-2405	5m (16.4')	BNC	Pt1000	General Purpose (GP)	PTFE	$335.00
HI1006-3005	5m (16.4')	BNC	No	High Temperature (HT)	PTFE	$335.00
HI1006-3007	7m (22.97')	BNC	No	High Temperature (HT)	PTFE	$335.00
HI1006-3205	5m (16.4')	BNC	Pt100	High Temperature (HT)	PTFE	$335.00
HI1006-2005	5m (16.4')	BNC	No	General Purpose (GP)	PTFE	$335.00
HI1006-1005	5m (16.4')	BNC	No	Low Temperature (LT)	PTFE	$400.00
HI1016-3005	5m (16.4')	BNC	No	High Temperature (HT)	Ceramic	$400.00
HI1006-1007	7m (22.97')	BNC	No	Low Temperature (LT)	PTFE	$425.00
HI1006-2010	10m (32.8')	BNC	No	General Purpose (GP)	PTFE	$425.00
HI1006-2015	15m (49.2')	BNC	No	General Purpose (GP)	PTFE	$445.00
HI1006-3010	10m (32.8')	BNC	No	High Temperature (HT)	PTFE	$445.00
HI1006-2210	10m (32.8')	BNC	Pt100	General Purpose (GP)	PTFE	$589.00
HI1006-1205	5m (16.4')	BNC	Pt100	Low Temperature (LT)	PTFE	$535.00
HI1006-2205	5m (16.4')	BNC	Pt100	General Purpose (GP)	PTFE	$535.00
HI1006-2305	5m (16.4')	Direct/ Color Coded Wires	Pt100	General Purpose (GP)	PTFE	$535.00
HI1006-2505	5m (16.4')	Direct/ Color Coded Wires	Pt1000	General Purpose (GP)	PTFE	$535.00
HI1006-4205	5m (16.4')	BNC	Pt100	Fluoride Resistant (HF)	PTFE	$535.00
HI1006-2215	15m (49.2')	BNC	Pt100	General Purpose (GP)	PTFE	$670.00
HI1006-3715	15m (49.2')	Direct/ Color Coded Wires	Pt100	High Temperature (HT)	PTFE	$675.00

Junction

Three junction types are available:

Annular non-clogging PTFE junction, for testing solutions with high content of suspended solids or for high pressure installation
Open junction, ideal for wastewater analysis
Ceramic junction

Connection Type

Electrodes are wired for direct connection to a transmitter or process controller, or with the standard BNC connector.

Glass Sensor

Hanna has developed four types of specialized glass. First is a durable sensor glass for general purpose, industrial use. This glass can withstand the stress of daily use. The remaining types of electrode glass allow continuous monitoring in highly acidic solutions containing fluoride ions, as well as high or low temperature process and streams significantly increase the electrode life.

Built-in Amplifier

Models with a built-in amplifier are necessary for long distance measurements, where it is not possible to install a transmitter. The internal amplifier can be powered directly from select Hanna process controllers or a power source that supplies the appropriate voltage.

Temperature Sensor

The pH electrodes with built-in 3-wire Pt100 or Pt1000 temperature sensor allow for the temperature compensation of pH readings as well as temperature measurements.

Cable Length

Non-amplified electrodes are provided with a 5, 10 or 15 m cable (16’, 33’ or 49’), while the amplified models are provided with a 15, 25, 50 or 75 m cable (49, 82, 164 or 246’).
