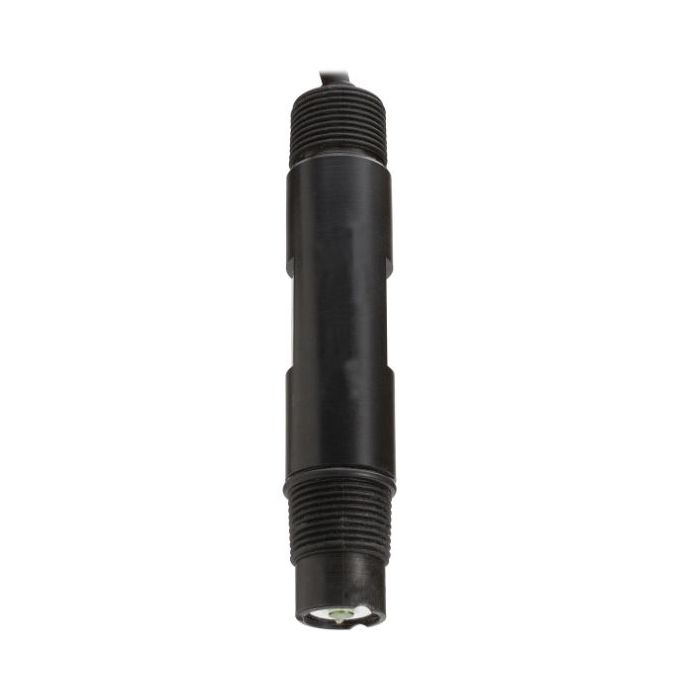

AmpHel® Flat-tip pH Electrode - General Purpose, 5m Cable, Pt 100 Temperature Sensor, BNC + Lead Connector
Najniža cijena u zadnjih 30 dana: 339,00 EUR (2.554,20 kn)
This amplified pH electrode is designed for industrial applications with features such as a PTFE junction, Pt100 temperature sensor, and PVDF body. With it's durable design, you can count on this electrode to stand up to your process environment.
- Flat-tip pH electrode.
- General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
- Built for everyday, demanding use in industrial applications.
Flat tipped pH electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
BNC + lead connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
General purpose glass formulation
General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
Built-in Pt100 temperature sensor
Ensures fast, accurately compensated readings even during sudden temperature fluctuations.
Specification
| Specification Name | Detail |
|---|---|
| SKU | HI6101405 |
| Range | pH: 0-13 |
| Tip Shape | Flat |
| Body | PVDF |
| Junction | Double, PTFE |
| Glass Type | GP (-5 to 80°C) |
| Electrolyte | Polymer |
| Matching Pin | Yes |
| Amplifier | No |
| Temperature Sensor | Yes |
| Temperature Sensor Type | Pt100 |
| Max Pressure | 6 bar (87 psi) |
| Connector | BNC + lead |
| Cable | 5m |
| Warranty | 6 months |
